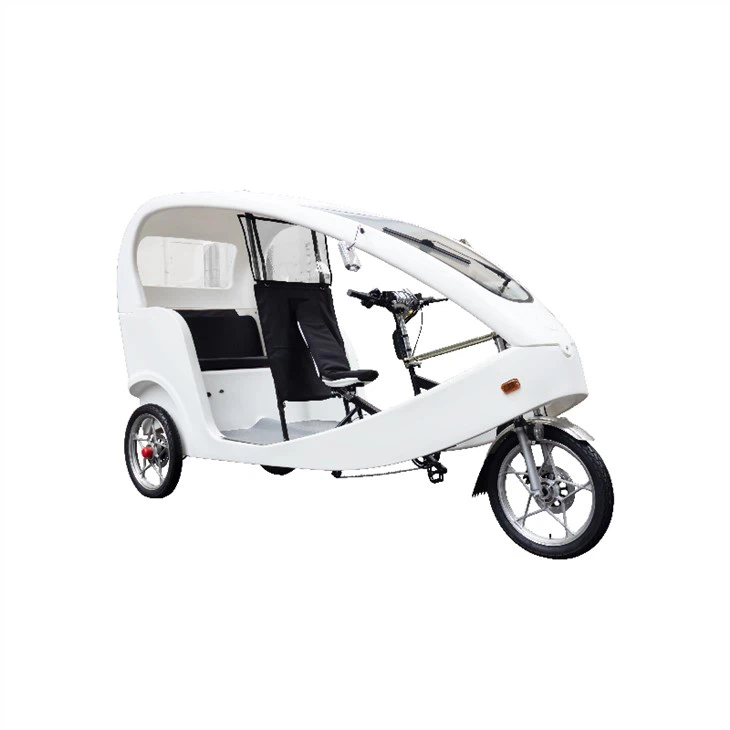

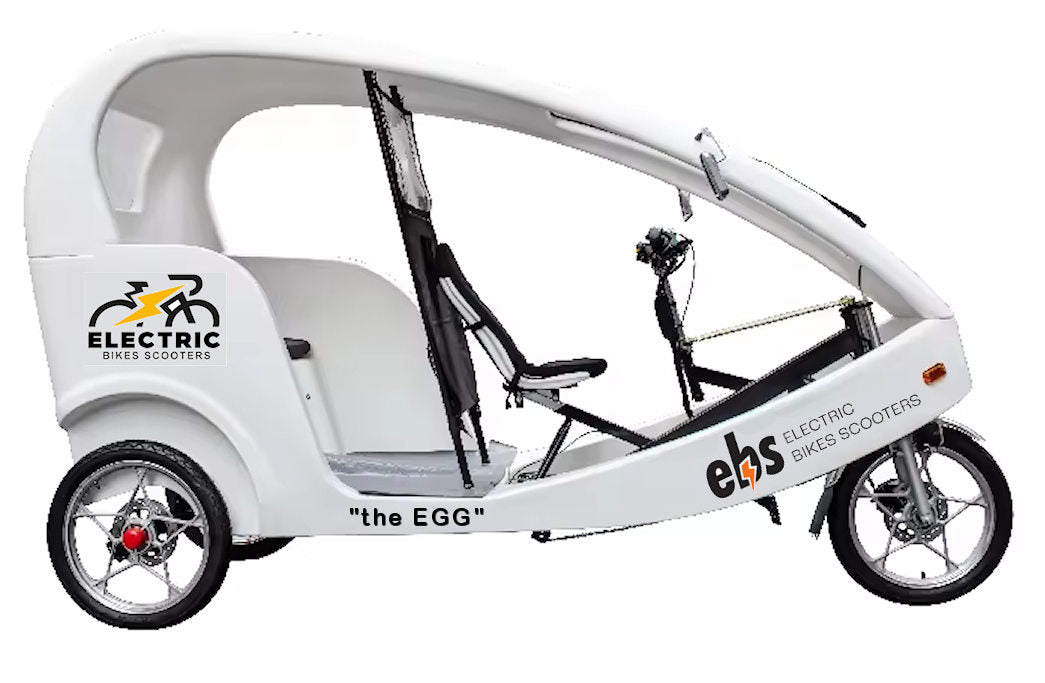

JOBOBIKE Mobility Scooter Trike, Pedicab, Family Taxi Cab, ("The Egg") is for transporting the mobility challenged.
"The Egg" maybe driven by an able-bodied driver and give the mobility challenged a feeling of freedom and fresh air, while seeing the sights.
Other uses maybe possible for the resourceful.
"The Egg" is also called the, The Chariot, Velo Taxi, Electric Motorized Tricycle, Trike Mobility Scooter, Pedicab, Family Taxi Cab, etc.
"The Egg" is an environmentally excellent way of transporting passengers.
"The Egg" is also known by a variety of other names such as, The Chariot, bike taxi, velotaxi, pedicab, bikecab, cyclo, beca, becak, trisikad, sikad, tricycle taxi, trishaw, or hatchback bike.
"The Egg" is human-powered, electric assisted, or electric powered, Trike Mobility Scooter, Pedicab, used for passenger transportation in urban areas.
No GST added to the JOBOBIKE Mobility Scooter e-trike as it is a mobility registered product and so is GST exempt.
Specifications
|
Model
|
300K-06
|
|
Materials
|
Steel frame, ABS plastic body
|
|
Motor
|
48V 1000W brushless motor (250/500/1000)
|
|
Battery
Upgrade
|
48V 45Ah Lead-acid
60V 80Ah Lithium (optional, please enquire)
|
|
Controller
|
48V 1000W brushless controller
|
|
Steering fork
|
Shoulder type damper
|
|
Damper
|
Drum spring damper (rear)
|
|

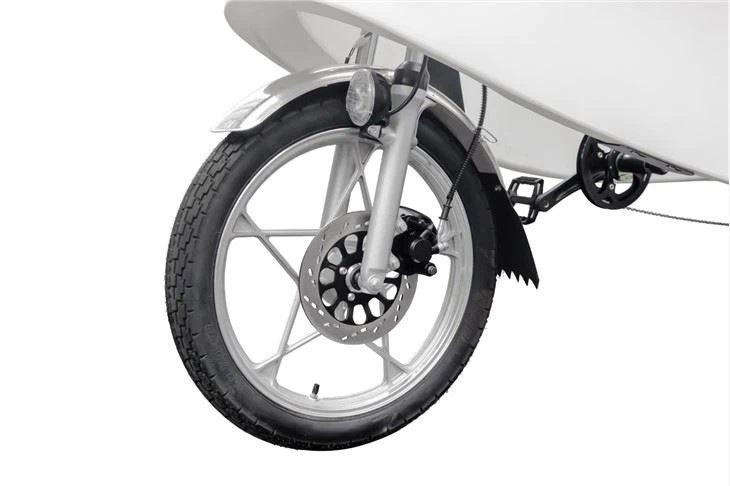

Brakes
|
Hydraulic Disc all wheels
|
|
Max braking distance
|
4 m
|
|
Loading capacity
|
300 kg
|
|
Climbing capability
|
20%
|
|
Parking capacity
|
20%
|
|
Max speed
|
10/25 kph (speed must be governed to 10kph on paths / pavements with pedestrians)
|
|
Driving distance
|
20-30 km with pedal assist on level ground
15-20 km without peddling on level ground
2.5x with Lithium battery upgrade
|
|
Vehicle size
|
3000*1000*1750mm
|
|

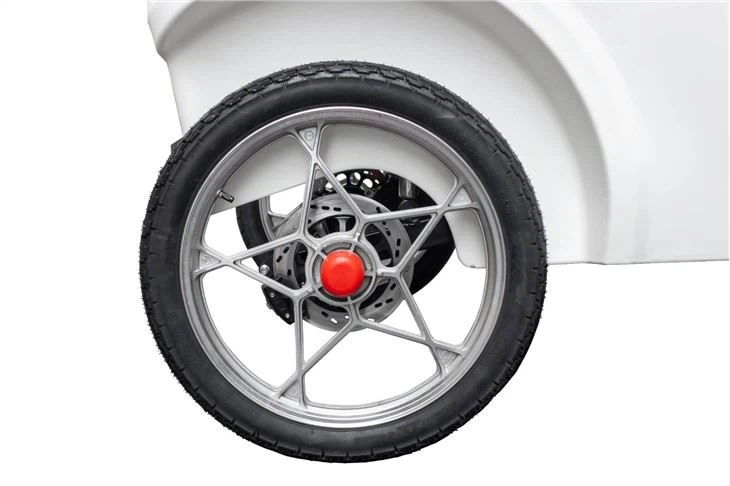

Tyre size
|
2.75-18
|
|
Wheel base
|
2500 mm
|
|
Wheel track
|
1040 mm
|
|

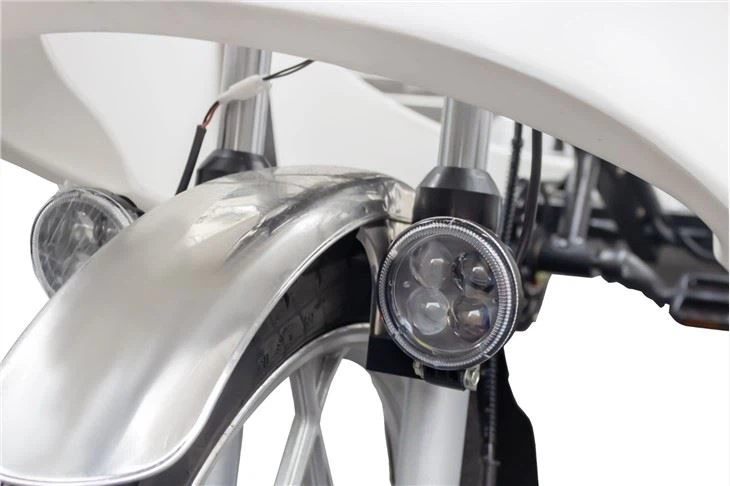

Front lights
|
LED energy saving bright double headlights
|
|

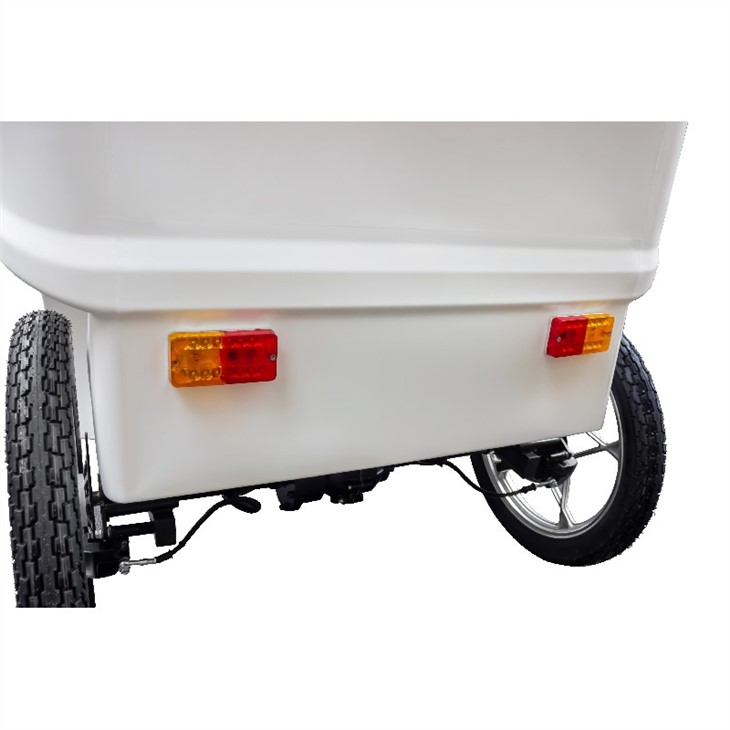

Rear lights
|
LED energy saving taillights, flashing brake lights, indicators
|
|

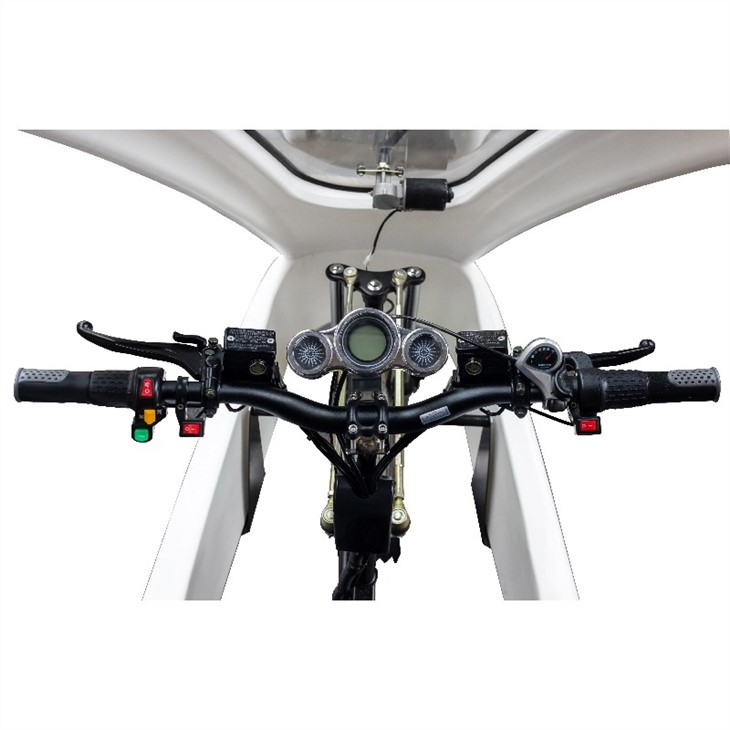

Dashboard
|
LCD digital meter, indicating lights, speed, odometer
|
|
Gear system
|
Shimano, 6/7 gears
|
|

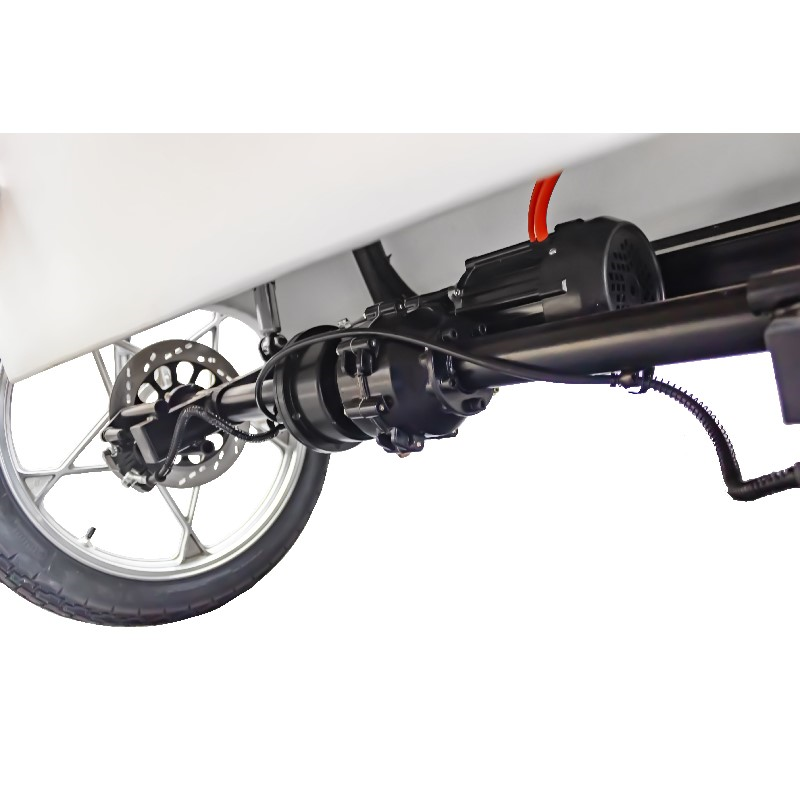

Drive System
|
Motor on Transaxle
|
|
Colour
|
White
|
|
Packing size / Weight
|
3100*1100*1850mm / 285kg
|
